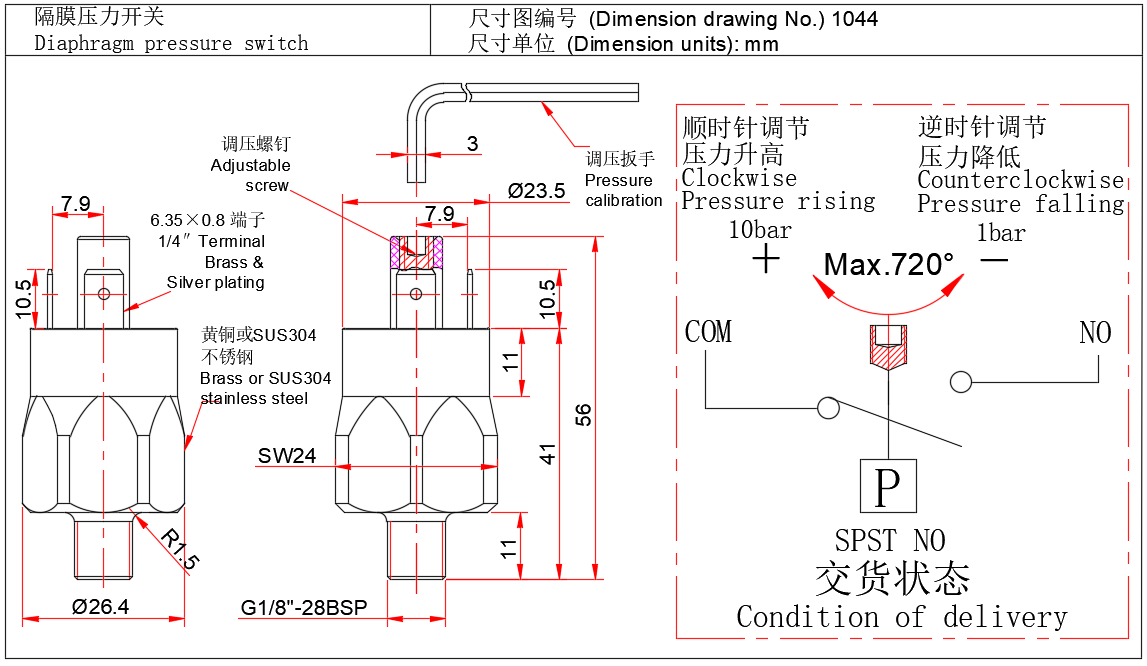

This product is manufactured using internationally advanced diaphragms (EPDM/Silicon/NBR/stainless steel, optional) and long-life microswitches. It has an overall brass or stainless steel structure, with a large adjustable pressure range and multiple sealing components to choose from. It is suitable for pressure monitoring and control of various fluids.

Widely used for vacuum pressure monitoring and control in various vacuum equipment and vacuum systems.

Adjustable pressure range: -1～-0.1、-0.5～-0.1、-0.5～+0.5、-1～+1bar (optional).

Electrical load：DC/AC 5V/12V/24/36V Max.3A; 50/60Hz AC 125V/250V Max.6A。
